Pipe Beveling Machines

Beaver S Series

Beaver CNC Series

Beaver CB Series

Stationary pipe beveling machine for pipes up to OD 3"

Pipe beveling and chamfering machine for pipes up to OD 8"

Automatic pipe beveling and chamfering machine for pipes up to OD 8"

Pipe beveling and chamfering machine for pipes up to OD 16

Pipe bevelling and chamfering machine for pipes up to OD 24

Pipe beveling and chamfering machine for pipes up to OD 30"

Pipe beveling and chamfering machine for pipes up to OD 48"

Beaver 3 S Manual

Beaver 6 S Manual

Beaver 8 S Manual

Beaver 8 S HS Automatic

Beaver 16 S Manual

Beaver 16 S Automatic

Beaver 16 S Automatic Classic

Beaver 24 S Automatic

Beaver 30 S Automatic

Beaver 48 S Automatic

Improve your business efficiency

A heavy-duty machine that creates perfect welding preparations with great precision. The Beaver S is available for pipes with an outside diameter of up to 56 inches, with manual and automatic control options.

Operates with form tools
Machining Range: 0,25" - 56"
Wall Thickness: up to 25mm in one pass

arrow_forward More about Beaver S Series chat Contact us

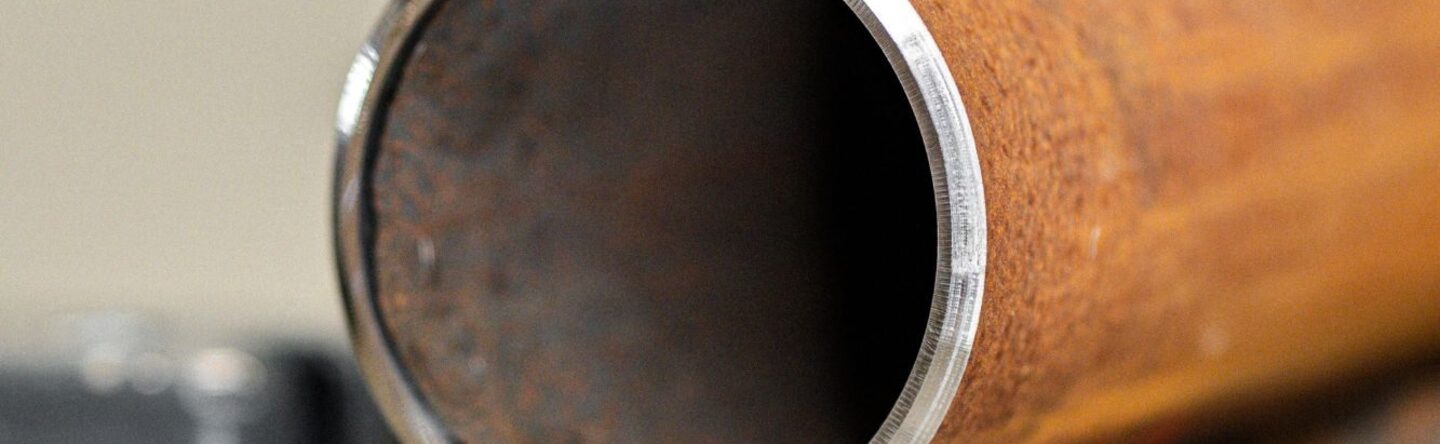

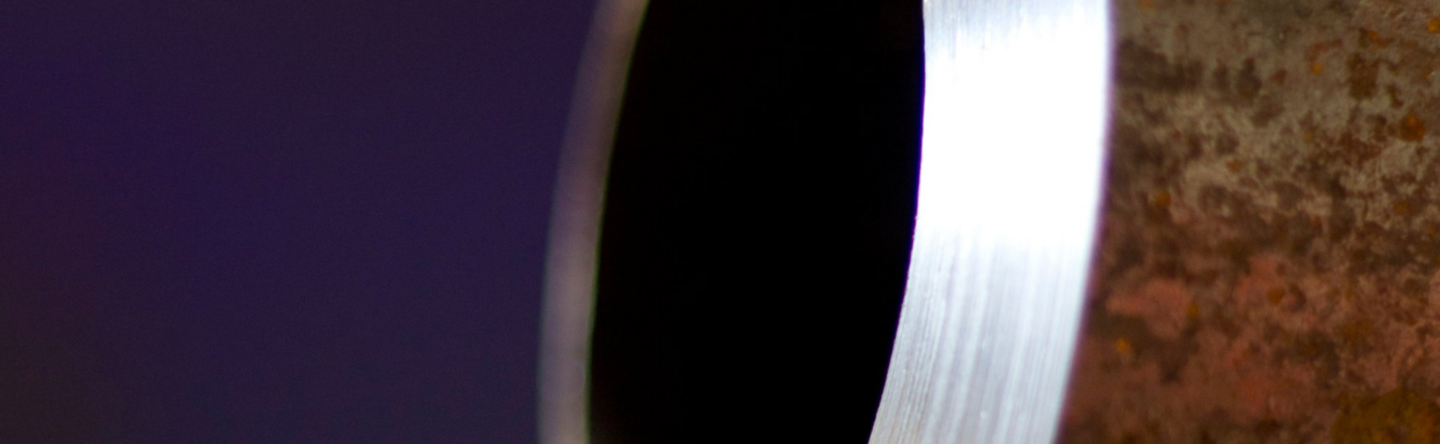

Pipe beveling

Pipe end preparation for welding is the first and the most important step; since the quality of the pipe beveling or pipe cutting has a direct impact on the quality of pipe welding. Therefore, having full control of the pipe preparation process ensures the faultless set-up for welding. Copier manufactures stationary pipe beveling machines that are fast, accurate, and durable for high production volumes.

The range of pipe bevelers differs by the diameter of the pipes, the production volume of pipe beveling, the material of pipes, the requirements, and tolerances for bevel shapes.

Beaver CB Series - for pipe cutting and beveling (in one pass)

Beaver CNC Series - for pipe beveling/chamfering, facing, squaring, deburring, tapering, cut grooving, and threading

Which Beveling Machine Fits Your Business?

Beaver S manual is suitable when:

The batch sizes are relatively small
The diameter range of the pipes that need to be machined is 0.25” – 16” (12 mm – 410 mm)
The maximum wall thickness is 25 mm
The production volume is relatively low

Beaver S Automatic is suitable when:

The batch sizes are large
The diameter range of the pipes that need to be machined is 0.25” – 56” (12mm – 1450mm)
The maximum wall thickness is 25mm ( if the wall thickness is > 25mm: multiple step beveling)
The production volume is high

Beaver CNC is suitable when:

The diameter range of the pipes need to be operated is 1” – 56” (33mm – 1450mm)
The pipe material is relatively tougher (duplex, and super duplex)
The wall thickness is unlimited

Beaver CB is suitable when:

The production volume is high
Multiple steps for the end product is needed
The diameter range of the pipes need to be operated is 1” – 56” (33mm – 1450mm)

Frequently Asked Questions

Which bevel shapes can Copier's bevel machines create?
- We have designed more than 350 tooling sets so far for various bevel shapes. Yet, our engineers love challenges, they are ready to design tooling for your complex bevel requirements.
  Contact us for detailed information.
  Read the article 'Bevel Shapes for Pipe Beveling'
Is it possible to modify a standard pipe beveling machine?
- Yes. Our engineering team can help you to have a custom modified pipe beveling machine that fits perfectly with your business and production requirements. Contact us for detailed information.
Does Copier offer portable bevel machines?
- No. We only manufacture stationary pipe beveling machines.
Is it possible to rent a pipe beveling machine?
- Yes, it is possible to rent a pipe beveling machine. We provide a rental pipe beveling machine for pipes up to 16 inches outside diameter. Contact us for detailed information.
